2004 [1D000000 THRU 1D999999] - Cat.# 90-896371
JETDRIVE · Catalog no 90-896371 · 19 groups · manuals & documents

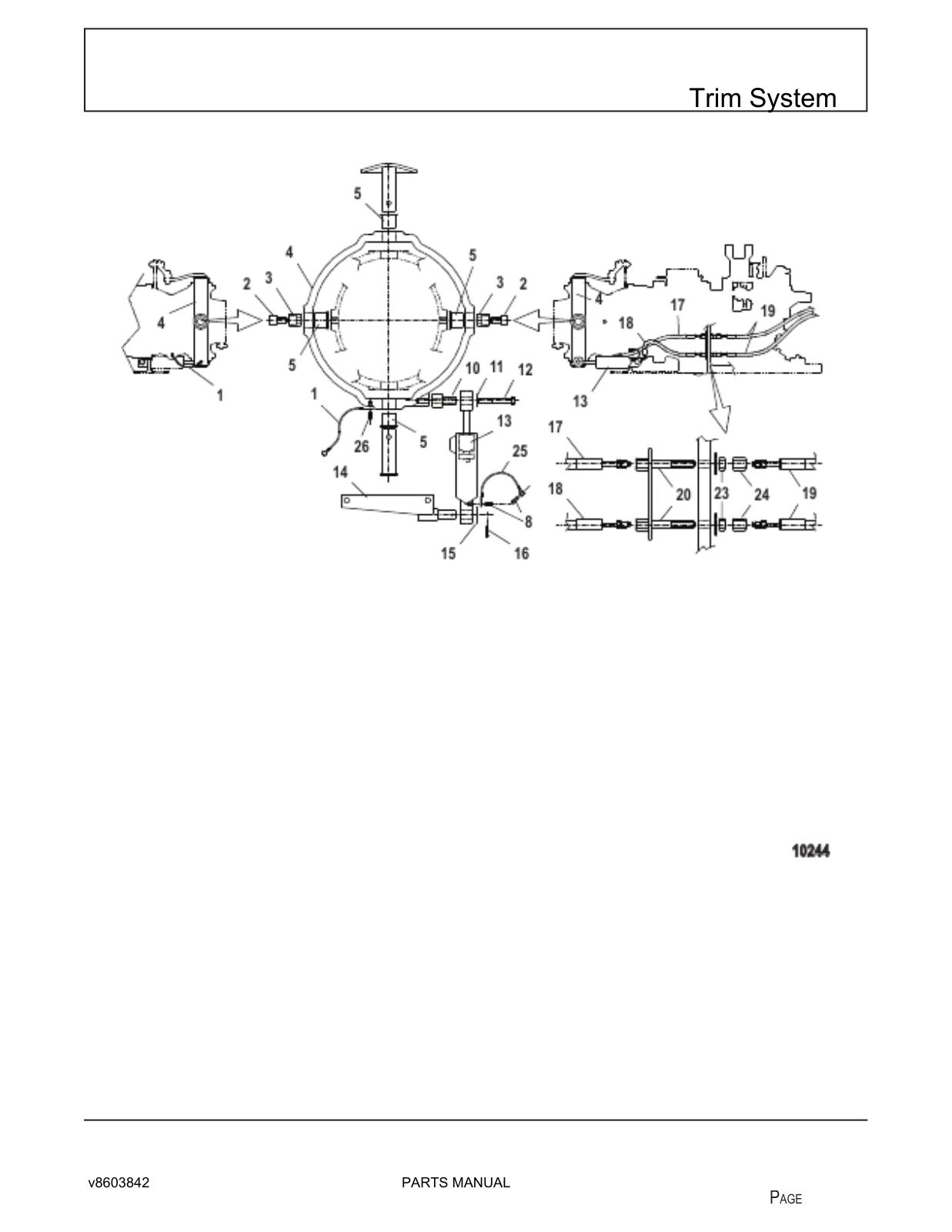

Trim System
29 partsPinch with two fingers or use the wheel/double-tap to zoom, drag to pan.
- 886964TRIM KITOut of stockDiscontinued223,251.17 ₺
- 886996BONDING WIREDiscontinuedask for price
- 887306SCREW (M12 x 20) · qty 2Discontinuedask for price
- 886966PIN Pivot · qty 2Discontinuedask for price
- 886965TRIM RINGDiscontinuedask for price
- 887276BUSHING Flanged · qty 4Discontinuedask for price
- 807754SCREW (#10-24 x .38) · qty 2Superseded by: 8M0113176ask for price
- 886967CYLINDER PIVOT PinDiscontinuedask for price
- 887257WASHER (M12)Discontinuedask for price
- 887307BOLT (M10 x 70)Discontinuedask for price
- 819365A2CYLINDER ASSEMBLYDiscontinuedask for price
- 886968CYLINDER MOUNTDiscontinuedask for price
- 887308WASHER (M16)Discontinuedask for price
- 886977PIN Split (M3.2 x 32)Discontinuedask for price
- 886971HOSE HydraulicDiscontinuedask for price
- 886970HOSE HydraulicDiscontinuedask for price
- 886974HOSE ASSEMBLY Hydraulic - Inboard · qty 2Discontinuedask for price
- 886972FITTING Bulkhead · qty 2Discontinuedask for price
- 887285NUT (.375) · qty 2Discontinuedask for price
- 886973FLARE DOUBLE UNIION (.188) · qty 2Discontinuedask for price
- 886999CABLE ASSEMBLY Bonding (140 mm M5)Discontinuedask for price
- 887310SCREW (.188 x .500)Discontinuedask for price
- 859725T1PUMP/MOTOR ASSEMBLYDiscontinuedask for price
- 79091FUSE 20 AmpereOut of stockSuperseded by: 8M0207796204.17 ₺
- 55098J CLIPSuperseded by: 8M0024808ask for price
- ask for price
- 13855A1NUT/SCREW KIT · qty 2Discontinuedask for price
- 886994HARNESS ASSEMBLY TrimDiscontinuedask for price
- 882751A1RELAY ASSEMBLY · qty 2Out of stockSuperseded by: 8M02077731,428.73 ₺
Does this catalog fit your engine?
Look up your serial number on the catalog page to find your engine's exact catalog.
