[0T178500 THRU 0T800999] - USA - Cat.# 90-88183801
115 HP EFI · Catalog no 90-88183801 · 33 groups · manuals & documents

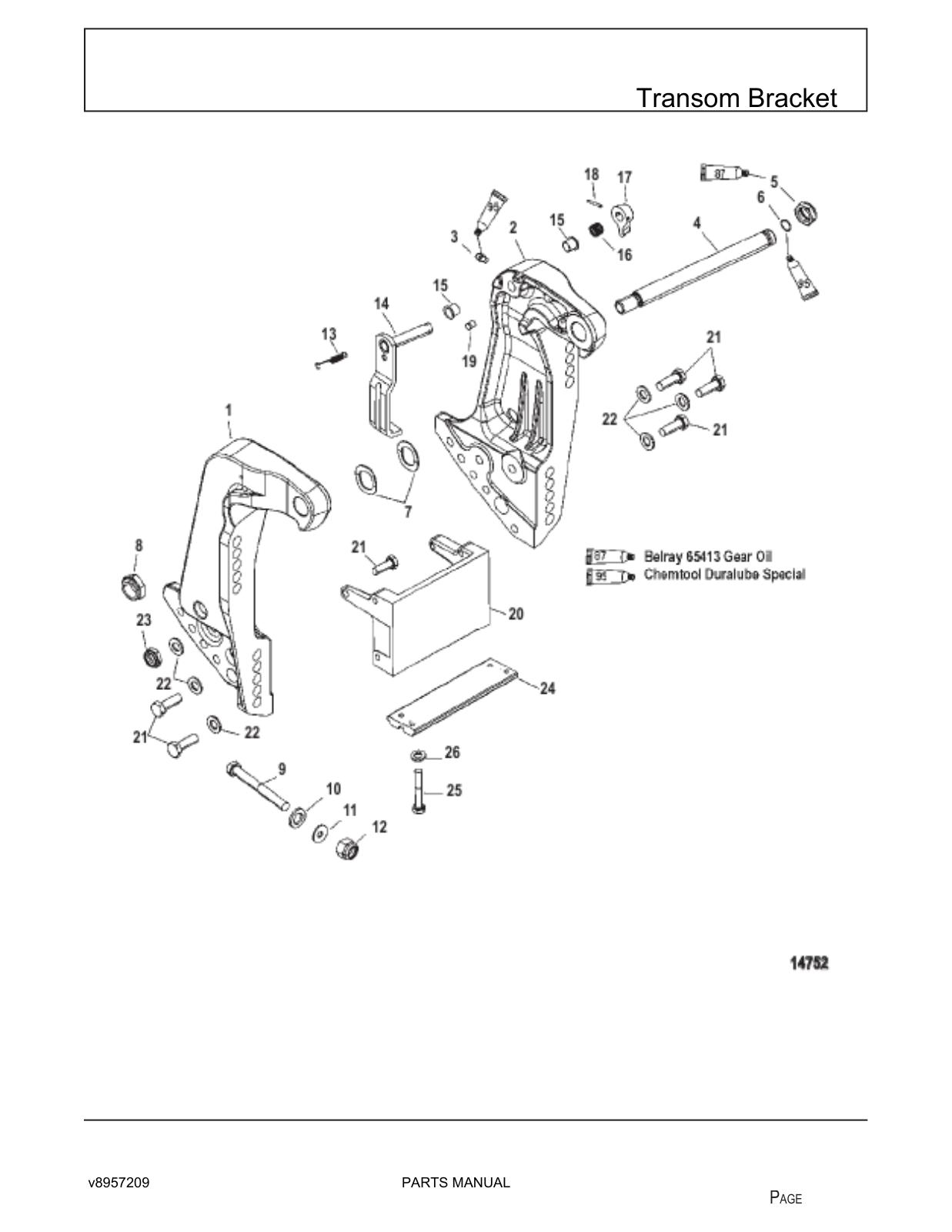

Transom Bracket
29 partsPinch with two fingers or use the wheel/double-tap to zoom, drag to pan.
- 828334F1BRACKET Transom (Starboard)Superseded by: 828334T02ask for price
- 828333A3BRACKET ASSEMBLY Transom (Port)Superseded by: 828333T07ask for price
- 98727FITTING GreaseSuperseded by: 8M0169588ask for price
- 99170A2TUBE KIT TiltDiscontinuedask for price
- 826125A1TILT TUBEOut of stock19,740.98 ₺
- 859133NUT (1.00-14)Discontinuedask for price
- 826135NUT (1.00-14) Nylon InsertOut of stock1,361.63 ₺
- 45711O-RING (.612 x .103)In stock86.14 ₺
- 88750WASHER · qty 2In stock366.94 ₺
- 858869NUT (.875-14)In stock257.48 ₺
- 826164NUT (.875-14)In stockSuperseded by: 8M02313511,250.74 ₺
- 677551SCREW (.500-20 x 4.500) · qty 4Out of stockSuperseded by: 8M0149747619.66 ₺
- 54012WASHER (.530 x .870 x .105) Stainless Steel · qty 4Out of stockSuperseded by: 8M0204665130.88 ₺
- 28421WASHER (1.5 x 3.05 x 0.13) Stainless Steel · qty 4Out of stockSuperseded by: 8M0204648147.54 ₺
- 82671117NUT (.500-20) · qty 4In stock370.75 ₺
- 830899SPRING TensionOut of stock366.94 ₺
- 821176T1LEVER ASSEMBLY Tilt LockSuperseded by: 821176T02ask for price
- 65830NYLINER · qty 2Out of stock165.62 ₺
- 830900SPRING CompressionOut of stock156.58 ₺
- 99633KNOBOut of stock265.57 ₺
- 99615PIN GrooveOut of stock257.48 ₺
- 99617PINSuperseded by: 893709ask for price
- 818771T1BRACKET AnchorSuperseded by: 8M0086406ask for price
- 858771SCREW (M10 x 30) · qty 6Out of stock142.30 ₺
- 4002319WASHER · qty 6Out of stock149.44 ₺
- ask for price
- 818298Q1ANODE KITIn stock985.64 ₺
- 4000330SCREW (M6 x 25) · qty 2In stockSuperseded by: 8M0204707132.31 ₺
- 29245WASHER (.281 x .500 x .060) Stainless Steel · qty 2In stockSuperseded by: 8M020464967.11 ₺
