1999 [0E345000 THRU 0E369299] - Belgium - Cat.# 90-803882R1
120XR2 (JET DRIVE) · Catalog no 90-803882R1 · 27 groups · manuals & documents

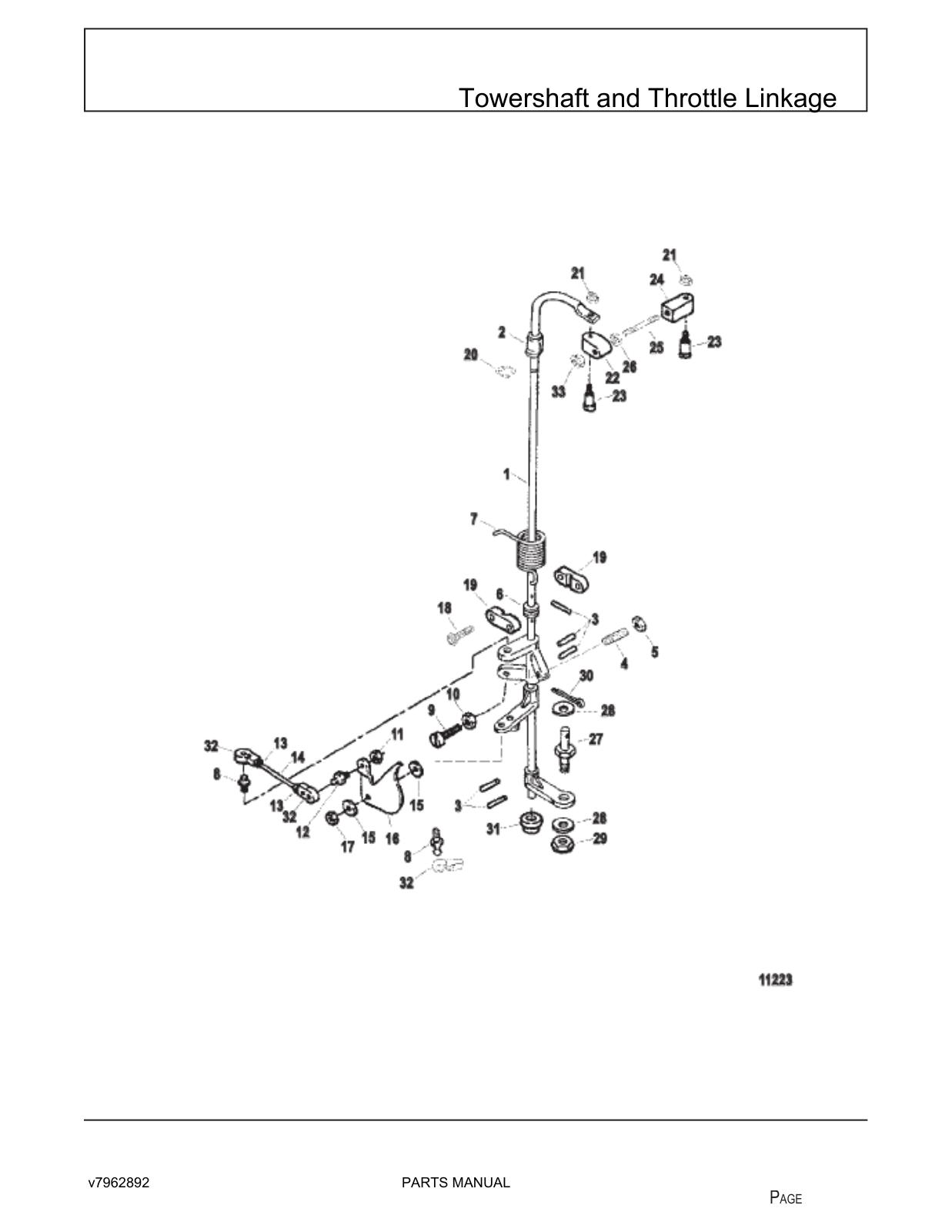

Towershaft and Throttle Linkage
33 partsPinch with two fingers or use the wheel/double-tap to zoom, drag to pan.
- 819484A4TOWERSHAFT KITDiscontinuedask for price
- 819513BUSHING UpperDiscontinuedask for price
- ask for price
- 805737SCREW (.250-28 x 1.00)Discontinuedask for price
- ask for price
- F1856WASHER · qty 2Discontinuedask for price
- 819533SPRING Throttle ReturnDiscontinuedask for price
- ask for price
- ask for price
- ask for price
- ask for price
- ask for price
- 68219NUT (#10-32) Stainless Steel · qty 2Out of stock29.03 ₺
- 819002LINK ThrottleDiscontinuedask for price
- F269319BEARING Throttle Cam · qty 2Discontinuedask for price
- 830065CAM ThrottleDiscontinuedask for price
- 72008NUT (.250-20)Superseded by: 8267088ask for price
- 19961088SCREW (#10-24 x .880) · qty 2Discontinuedask for price
- F607689BEARING Towershaft Support · qty 2Discontinuedask for price
- 13194RING RetainingIn stock63.77 ₺
- F7009NUT (#10-24) · qty 2Discontinuedask for price
- ask for price
- F499026SWIVEL Control Rod End · qty 2Discontinuedask for price
- ask for price
- ask for price
- ask for price
- 820565STUD Throttle ArmDiscontinuedask for price
- 29245WASHER (.281 x .500 x .060) Stainless Steel · qty 2In stockSuperseded by: 8M020464967.11 ₺
- 814101NUT (.250-20) Stainless SteelSuperseded by: 8M0207776ask for price
- 21071COTTER PINSuperseded by: 210711ask for price
- F40689-1BEARING Lower TowershaftDiscontinuedask for price
- 830875SOCKET Ball · qty 3Superseded by: 817428ask for price
- 35045NUT (.250-28)Out of stockSuperseded by: 82670910960.92 ₺
Does this catalog fit your engine?
Look up your serial number on the catalog page to find your engine's exact catalog.
