1995 [0E080400 THRU 0E145579] - Belgium - Cat.# 90-809468
90 (JET DRIVE) · Catalog no 90-809468 · 24 groups · manuals & documents

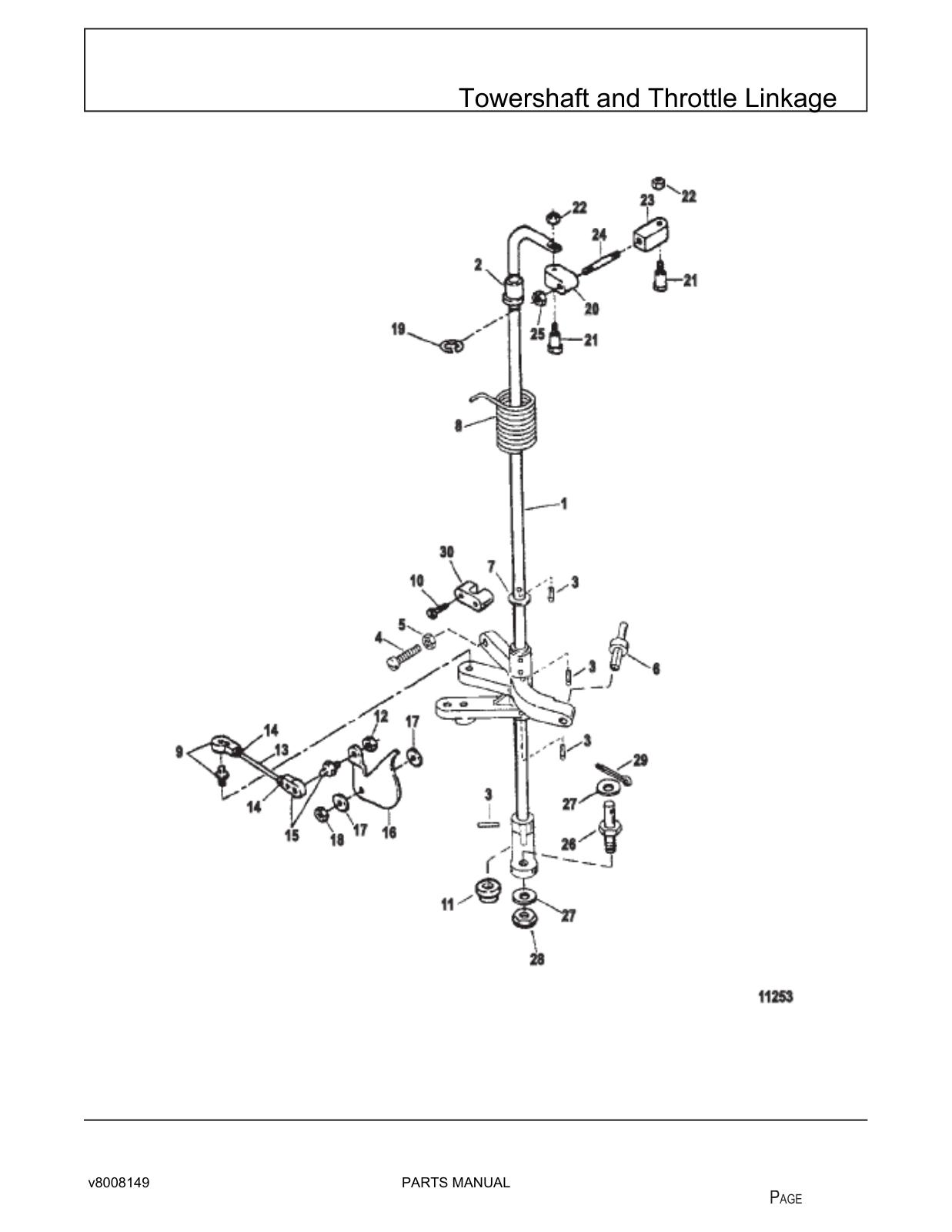

Towershaft and Throttle Linkage
30 partsPinch with two fingers or use the wheel/double-tap to zoom, drag to pan.
- 820085A3TOWERSHAFT KITSuperseded by: 820085A5ask for price
- 819513BUSHING UpperDiscontinuedask for price
- ask for price
- F1820SCREW (.250-20 x 1.375)Discontinuedask for price
- ask for price
- F1727RIVET NylonDiscontinuedask for price
- F1856WASHERDiscontinuedask for price
- 819533SPRING Throttle ReturnDiscontinuedask for price
- 8177471BEARING With Ball Joint · qty 2Superseded by: 828514A1ask for price
- 19931088SCREW (#10-24 x .875) · qty 2Discontinuedask for price
- F40689-1BEARING Lower TowershaftDiscontinuedask for price
- ask for price
- 819002LINK ThrottleDiscontinuedask for price
- 68219NUT (#10-32) Stainless Steel · qty 2Out of stock29.03 ₺
- 8177471BEARING With Ball JointSuperseded by: 828514A1ask for price
- 8191181CAM ThrottleSuperseded by: 8191183ask for price
- F269319BEARING Throttle Cam · qty 2Discontinuedask for price
- 72008NUT (.250-20)Superseded by: 8267088ask for price
- 13194RING RetainingIn stock63.77 ₺
- ask for price
- F499026SWIVEL Control Rod End · qty 2Discontinuedask for price
- F7009NUT (#10-24) · qty 2Discontinuedask for price
- ask for price
- ask for price
- ask for price
- 820565STUD Throttle ArmDiscontinuedask for price
- 29245WASHER (.281 x .500 x .060) Stainless Steel · qty 2In stockSuperseded by: 8M020464967.11 ₺
- 814101NUT (.250-20) Stainless SteelSuperseded by: 8M0207776ask for price
- 21071COTTER PINSuperseded by: 210711ask for price
- 820078BEARING Towershaft SupportDiscontinuedask for price
Does this catalog fit your engine?
Look up your serial number on the catalog page to find your engine's exact catalog.
