[6300953 & Up] - Cat.# 90-13284
THRUSTER II · Catalog no 90-13284 · 6 groups · manuals & documents

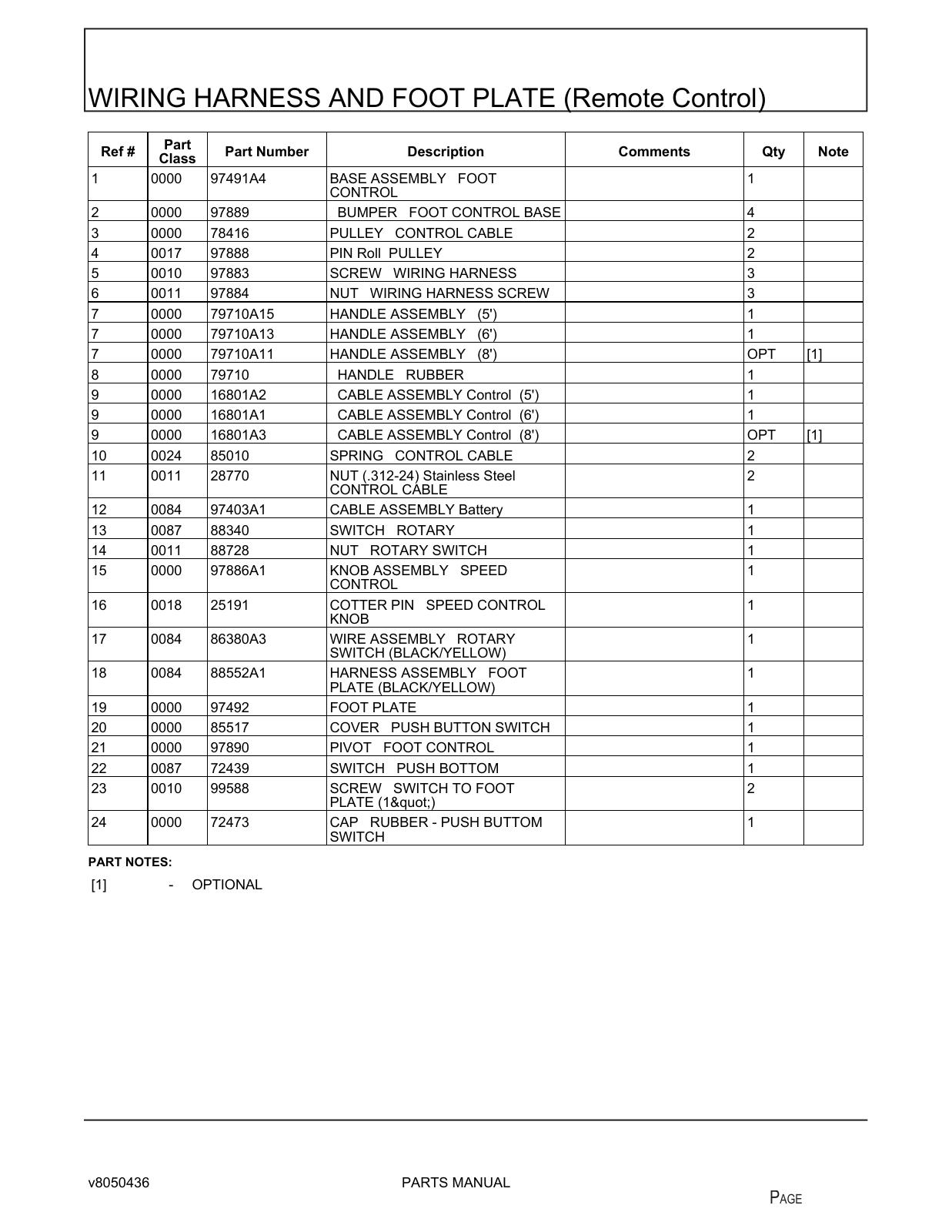

WIRING HARNESS AND FOOT PLATE (Remote Control)
28 partsPinch with two fingers or use the wheel/double-tap to zoom, drag to pan.
- 97491A4BASE ASSEMBLY FOOT CONTROLSuperseded by: 17590A5ask for price
- 97889BUMPER FOOT CONTROL BASE · qty 4Superseded by: MPM02301ask for price
- 78416PULLEY CONTROL CABLE · qty 2Superseded by: MPM12101ask for price
- 97888PIN Roll PULLEY · qty 2Discontinuedask for price
- 97883SCREW WIRING HARNESS · qty 3Discontinuedask for price
- 97884NUT WIRING HARNESS SCREW · qty 3Discontinuedask for price
- 79710A15HANDLE ASSEMBLY (5')Discontinuedask for price
- 79710A13HANDLE ASSEMBLY (6')Discontinuedask for price
- 79710A11HANDLE ASSEMBLY (8')Discontinuedask for price
- 79710HANDLE RUBBERSuperseded by: 79710Task for price
- ask for price
- 16801A1CABLE ASSEMBLY Control (6')Discontinuedask for price
- 16801A3CABLE ASSEMBLY Control (8')Discontinuedask for price
- ask for price
- ask for price
- 97403A1CABLE ASSEMBLY BatteryDiscontinuedask for price
- 88340SWITCH ROTARYDiscontinuedask for price
- 88728NUT ROTARY SWITCHDiscontinuedask for price
- 97886A1KNOB ASSEMBLY SPEED CONTROLDiscontinuedask for price
- ask for price
- ask for price
- ask for price
- 97492FOOT PLATESuperseded by: 97492Task for price
- 85517COVER PUSH BUTTON SWITCHDiscontinuedask for price
- 97890PIVOT FOOT CONTROLDiscontinuedask for price
- 72439SWITCH PUSH BOTTOMSuperseded by: 72439Task for price
- ask for price
- 72473CAP RUBBER - PUSH BUTTOM SWITCHDiscontinuedask for price
Does this catalog fit your engine?
Look up your serial number on the catalog page to find your engine's exact catalog.
