[5516585 & Up] - Cat.# 90-13285
THRUSTER · Catalog no 90-13285 · 8 groups · manuals & documents

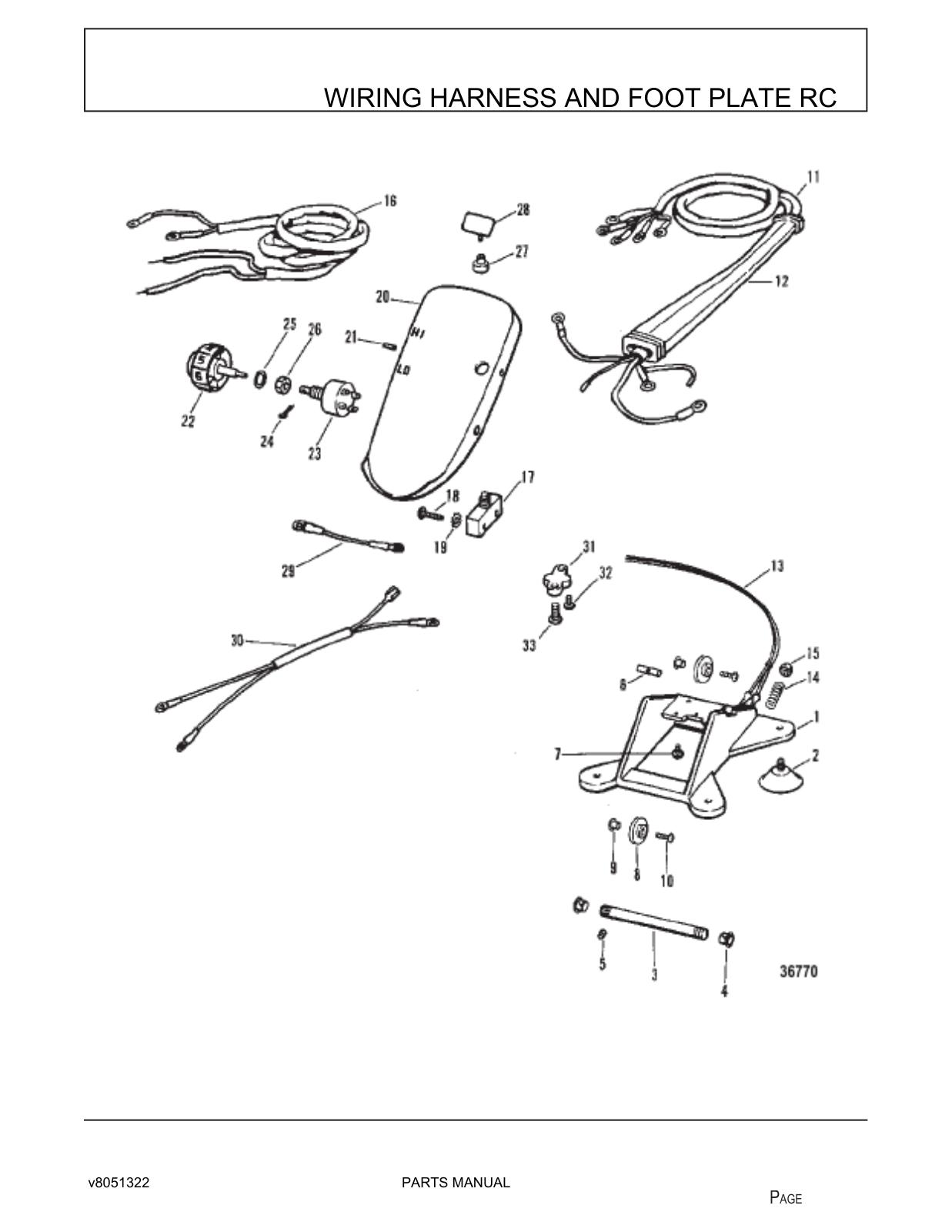

WIRING HARNESS AND FOOT PLATE RC
37 partsPinch with two fingers or use the wheel/double-tap to zoom, drag to pan.
- 89263TBASEDiscontinuedask for price
- 72474SUCTION CUPS · qty 4Superseded by: 724741ask for price
- 72423SHAFTSuperseded by: 72423A1ask for price
- ask for price
- 89601SCREW RETAINER TO DRIVE SHAFTSuperseded by: 824081ask for price
- 72179RETAINER CONTROL CABLESuperseded by: MFM00601ask for price
- ask for price
- 78416PULLEY CONTROL CABLE · qty 2Superseded by: MPM12101ask for price
- 78417PIVOT · qty 2Superseded by: MPM12201ask for price
- ask for price
- 79710A16HANDLE ASSEMBLY (5")Discontinuedask for price
- 79710A14HANDLE ASSEMBLY (6")Discontinuedask for price
- 79710A12HANDLE ASSEMBLY (8")Discontinuedask for price
- 79710THANDLEDiscontinuedask for price
- ask for price
- 16801A1CABLE ASSEMBLY Control (6')Discontinuedask for price
- 16801A3CABLE ASSEMBLY Control (8')Discontinuedask for price
- ask for price
- ask for price
- 79611A4CABLE ASSEMBLY BatteryDiscontinuedask for price
- 72439SWITCH PUSH BOTTOMSuperseded by: 72439Task for price
- ask for price
- 21423LOCKWASHER · qty 2Superseded by: 15876ask for price
- 89264A1FOOT PLATE ASSEMBLYDiscontinuedask for price
- 72250PIN Roll HOUSING TO DRIVE SHAFTDiscontinuedask for price
- 181991INDICATOR KNOBDiscontinuedask for price
- 88340SWITCH ROTARYDiscontinuedask for price
- ask for price
- ask for price
- 88728NUT ROTARY SWITCHDiscontinuedask for price
- 72473CAP RUBBER - PUSH BUTTOM SWITCHDiscontinuedask for price
- 85517COVER PUSH BUTTON SWITCHDiscontinuedask for price
- ask for price
- ask for price
- 67460TERMINAL BLOCK · qty 2Discontinuedask for price
- ask for price
- 98.52 ₺
Does this catalog fit your engine?
Look up your serial number on the catalog page to find your engine's exact catalog.
